Galfan Coated Alloy PVC Coated Gabion Box 2*1*1M Customized Size
Product Details:
| Place of Origin: | China, China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100.0 Pieces |
|---|---|
| Packaging Details: | 2x1x1bundle |
| Supply Ability: | 10000 Piece/Pieces per Day |
|
Detail Information |
|||
| Place Of Origin: | China | Material: | Alloy |
|---|---|---|---|
| Delivery Time: | 22-30 Days | Alloy: | Galfan Galvanized Alloy Wire, Zn-10%AL |
| PVC Thickness: | PVC Coating Norminal Thickness 0.5mm | Tensile Strength: | Tensile Strength 350-550N/mm2 Per EN 10223-3:2013 |
| Wire Tolerance: | Wire Tolerance Is Per EN 10218 (Class T1) | Size Of Gabions: | 2*1*1M Or Customized |
| Steel Wire Diameter: | 2.7mm Or Customized | Selvedge Wire: | 3.4mm |
| Mesh Size: | 8*10CM For Gabion Boxes | PVC Color: | Customized To RAL Standards |
| Coutry Of Origin: | China | ||
Product Description
Product Description
Specification
|
Wire Tolerance
|
Wire tolerance is per EN 10218 (Class T1)
|
|
Elongation
|
Elongation > 8% per EN 10223-3:2013
|
|
Mass of GALFAN
|
Galfan coating meets EN 10244-2 (table 5 - class A)
|
|
GALFAN Adhesion
|
Galfan adhesion meets EN 10244
|
|
Accelerated Test
|
Out wearing accelerated test is per EN ISO 6988
|
|
PVC technical characteristics and Aging Resistance
|
Technical characteristics and aging resistance of PVC coating comply with EN 10245-1
|
|
Resistance to UV radiation
|
Resistance to UV radiation: the tensile strength and elongation at break of the base compound after 2500 hours of exposure to
QUV-A (ISO 4892-3 mode 1) do not change more than 25% from the initial test results.
|
|
Chemical Resistance
|
Chemical resistance: the PVC resist the chemical agents in concentrations that are representative of soil and water normally found
in civil works.
|
|
Aging test in salt spray
|
Outwearing accelerated ageing test in salt spray: when the PVC coated wire mesh is subjected to the neutral salt spray test (ISO
9227) after 6000 hours of exposure the mesh does not show more than 5% of DBR (Dark Brown Rust).
|
|
Resistance to UV abrasion
|
Resistance to abrasion: the PVC coating does not expose metal wire when tested in accordance with procedure described in part
4.1.2.1 of EN 60229:2008, after 100,000 cycles with a vertical force of the steel angle of 20N.
|
|
Wire Mesh tensile strength
|
The nominal tensile strength of the wire mesh is as per EN 10223-3:2013.
|
|
Wire mesh punch strength
|
The punch strength of the wire mesh is as per UNI 11437 and ISO 17746.
|
|
PVC crack test
|
When the mesh is tested at 50% of the nominal tensile strength in accordance with EN 10223-3:2013, the wires will not show cracks
in the organic coating within the double twist region.
|
|
Manufacturing Style
|

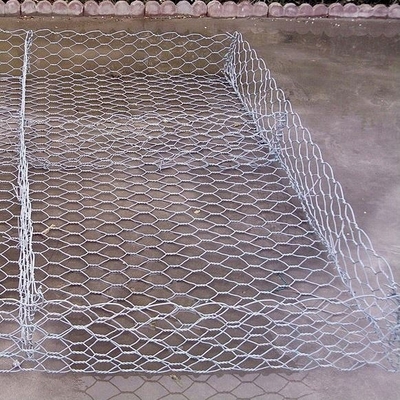

Hexagonal Woven Mesh
|
Process
Seaming
unpack
Quality inspection
Press package
Finished product
